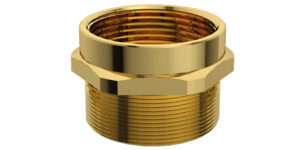

Adaptery do dławnic kablowych

produkt klasy premium w konkurencyjnej cenie

Wykorzystasz je, aby zwiększyć rozmiar gwintu wejściowego do obudowy. Certyfikowane są do użytku w strefie 1, 2, 21 i 22.

Dławnice kablowe Hardo z certyfikatem atex

Dławnice kablowe Hardo z certyfikatem iecex

Dławnice kablowe Ex Hardo certyfikat unijny ce

Dane techniczne adapterów

Adaptery do przeciwwybuchowych dławnic kablowych marki HARDO posiadają certyfikaty ATEX oraz IECEx.

Certyfikaty:	ATEX, IECEx
Oznaczenie ATEX:	Ex II 2 GD Ex db IIC Gb Ex II 2 GD Ex eb IIC Gb Ex II 2 GD tb IIIC Db
Oznaczenie IECEx:	Ex db IIC Gb Ex eb IIC Gb Ex tb IIIC Db
Do zastosowania w strefach Ex:	1, 2, 21, 22
Temperatura otoczenia:	-55°C do +160°C
Stopień ochrony IP:	IP66/IP68
Rodzaj ochrony:	Ex d, Ex e, Ex t
Rodzaje gwintów:	od M16 do M100
Materiał:	niklowany mosiądz, stal nierdzewna 316L, mosiądz, niklowanie bezprądowe
Adaptery:	gwint metryczny/gwint metryczny, gwint metryczny/gwint calowy, gwint calowy/gwint calowy i gwint calowy/gwint metryczny
Rozmiary:	metryczne: od M16 do M100; calowe: od 3/8″ do 4″

Dokumentacja producenta

PDF: Deklaracja zgodności UE

PDF: Certyfikat IECEx

PDF: Certyfikat ATEX

PDF: Karta Katalogowa Adapterów

PDF: instrukcja obsługi i eksploatacji

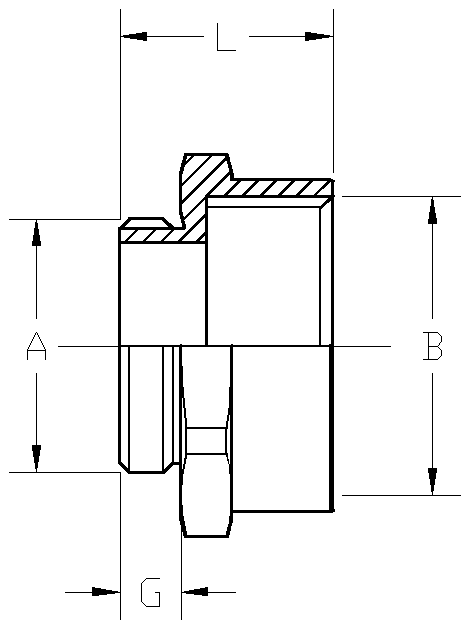

Wymiary

Adapter metryczny – metryczny

Adapter metryczny – NPT

Nr produktu	"A"	"B"	"L"	"A/F"	"G"
HAD 0M1M	M16x1.5	M20x1.5	34	25	16
HAD 0M2M	M16x1.5	M25x1.5	34	30	16
HAD 1M1M	M20x1.5	M20x1.5	34	25	16
HAD 1M2M	M20x1.5	M25x1.5	34	30	16
HAD 1M3M	M20x1.5	M32x1.5	34	36	16
HAD 2M2M	M25x1.5	M25x1.5	34	30	16
HAD 2M3M	M25x1.5	M32x1.5	34	36	16
HAD 2M4M	M25x1.5	M40x1.5	34	45	16
HAD 2M5M	M25x1.5	M50x1.5	34	55	16
HAD 3M3M	M32x1.5	M32x1.5	34	36	16
HAD 3M4M	M32x1.5	M40x1.5	34	45	16
HAD 3M5M	M32x1.5	M50x1.5	34	55	16
HAD 4M4M	M40x1.5	M40x1.5	34	45	16
HAD 4M5M	M40x1.5	M50x1.5	34	55	16
HAD 4M6M	M40x1.5	M63x1.5	34	68	16
HAD 4M7M	M40x1.5	M75x1.5	39	80	16
HAD 5M5M	M50x1.5	M50x1.5	34	55	16
HAD 5M6M	M50x1.5	M63x1.5	36	68	16
HAD 5M7M	M50x1.5	M75x1.5	39	80	16
HAD 6M6M	M63x1.5	M63x1.5	34	68	16
HAD 6M7M	M63x1.5	M75x1.5	39	80	16
HAD 6M8M	M63x1.5	M90x1.5	39	95	16
HAD 7M7M	M75x1.5	M75x1.5	44	80	20
HAD 7M8M	M75x1.5	M90x1.5	44	95	20
HAD 7M9M	M75x1.5	M100x1.5	44	105	20
HAD 8M8M	M90x1.5	M90x1.5	44	95	20

Nr produktu	"A"	"B"	"L"	"A/F"	"G"
HAD 0M0N	M16x1.5	3/8” NPT	34	20	16
HAD 0M1N	M16x1.5	1/2” NPT	37	25	16
HAD 0M2N	M16x1.5	3/4” NPT	37	30	16
HAD 1M1N	M20x1.5	1/2” NPT	37	25	16
HAD 1M2N	M20x1.5	3/4” NPT	37	30	16
HAD 1M3N	M20x1.5	1” NPT	41	36	16
HAD 2M2N	M25x1.5	3/4” NPT	37	30	16
HAD 2M3N	M25x1.5	1” NPT	41	36	16
HAD 2M4N	M25x1.5	1.1/4” NPT	41	45	16
HAD 3M3N	M32x1.5	1” NPT	41	36	16
HAD 3M4N	M32x1.5	1.1/4” NPT	41	45	16
HAD 3M5N	M32x1.5	1.1/2” NPT	43	55	16
HAD 4M4N	M40x1.5	1.1/4” NPT	41	45	16
HAD 4M5N	M40x1.5	1.1/2” NPT	43	55	16
HAD 4M6N	M40x1.5	2” NPT	43	65	16
HAD 5M5N	M50x1.5	1.1/2” NPT	43	55	16
HAD 5M6N	M50x1.5	2” NPT	43	65	16
HAD 5M7N	M50x1.5	2.1/2” NPT	47	80	16
HAD 6M6N	M63x1.5	2” NPT	43	68	16
HAD 6M7N	M63x1.5	2.1/2” NPT	47	80	16
HAD 6M8N	M63x1.5	3” NPT	47	95	16
HAD 7M7N	M75x1.5	2.1/2” NPT	52	80	20
HAD 7M8N	M75x1.5	3” NPT	52	95	20
HAD 7M9N	M75x1.5	4” NPT	54	120	20
HAD 8M8N	M90x1.5	3” NPT	52	95	20
HAD 8M9N	M90x1.5	4” NPT	54	120	20
HAD 9M9N	M100x1.5	4” NPT	54	120	20

Adapter NPT – metryczny

Adapter NPT – NPT

Nr produktu	"A"	"B"	"L"	"A/F"	"G"
HAD 0N0M	3/8” NPT	M16x1.5	33	25	16
HAD 0N1M	3/8” NPT	M20x1.5	33	25	16
HAD 1N1M	1/2” NPT	M20x1.5	38	25	21
HAD 1N2M	1/2” NPT	M25x1.5	39	30	21
HAD 1N3M	1/2” NPT	M32x1.5	39	36	21
HAD 2N2M	3/4” NPT	M25x1.5	39	30	21
HAD 2N3M	3/4” NPT	M32x1.5	39	36	21
HAD 2N4M	3/4” NPT	M40x1.5	39	45	21
HAD 3N3M	1” NPT	M32x1.5	44	36	26
HAD 3N4M	1” NPT	M40x1.5	44	45	26
HAD 3N5M	1” NPT	M40x1.5	44	55	26
HAD 4N4M	1.1/4” NPT	M40x1.5	44	45	26
HAD 4N5M	1.1/4” NPT	M50x1.5	44	55	26
HAD 4N6M	1.1/4” NPT	M63x1.5	44	68	26
HAD 5N5M	1.1/2” NPT	M50x1.5	45	55	27
HAD 5N6M	1.1/2” NPT	M63x1.5	45	68	27
HAD 5N7M	1.1/2” NPT	M75x1.5	50	80	27
HAD 6N6M	2” NPT	M63x1.5	48	68	28
HAD 6N7M	2” NPT	M75x1.5	51	80	28
HAD 6N8M	2” NPT	M90x1.5	51	95	28
HAD 7N7M	2.1/2” NPT	M75x1.5	65	80	41
HAD 7N8M	2.1/2” NPT	M90x1.5	65	95	41
HAD 7N9M	2.1/2” NPT	M100x1.5	66	105	41
HAD 8N8M	3” NPT	M90x1.5	66	95	42
HAD 8N9M	3” NPT	M100x1.5	66	105	42
HAD 9N9M	3” NPT	M100x1.5	70	120	45

Nr produktu	"A"	"B"	"L"	"A/F"	"G"
HAD 0N1N	3/8” NPT	1/2” NPT	37	25	16
HAD 0N2N	3/8” NPT	3/4” NPT	42	30	21
HAD 1N1N	1/2” NPT	1/2” NPT	42	36	21
HAD 1N2N	1/2” NPT	3/4” NPT	42	36	21
HAD 2N2N	3/4” NPT	3/4” NPT	42	45	21
HAD 2N3N	3/4” NPT	1” NPT	46	45	21
HAD 3N3N	1” NPT	1” NPT	51	45	26
HAD 3N4N	1” NPT	1.1/4” NPT	51	55	26
HAD 3N5N	1” NPT	1.1/2” NPT	53	55	26
HAD 4N4N	1.1/4” NPT	1.1/4” NPT	51	55	26
HAD 4N5N	1.1/4” NPT	1.1/2” NPT	53	55	26
HAD 4N6N	1.1/4” NPT	2” NPT	53	68	26
HAD 5N5N	1.1/2” NPT	1.1/2” NPT	54	68	27
HAD 5N6N	1.1/2” NPT	2” NPT	54	68	27
HAD 5N7N	1.1/2” NPT	2.1/2” NPT	58	68	27
HAD 6N6N	2” NPT	2” NPT	55	80	28
HAD 6N7N	2” NPT	2.1/2” NPT	59	80	28
HAD 6N8N	2” NPT	3” NPT	59	80	28
HAD 7N7N	2.1/2” NPT	2.1/2” NPT	73	80	41
HAD 7N8N	2.1/2” NPT	3” NPT	73	80	41
HAD 7N9N	2.1/2” NPT	4” NPT	73	95	41
HAD 8N8N	3” NPT	3” NPT	74	95	42
HAD 9N9N	3” NPT	4” NPT	74	120	42
